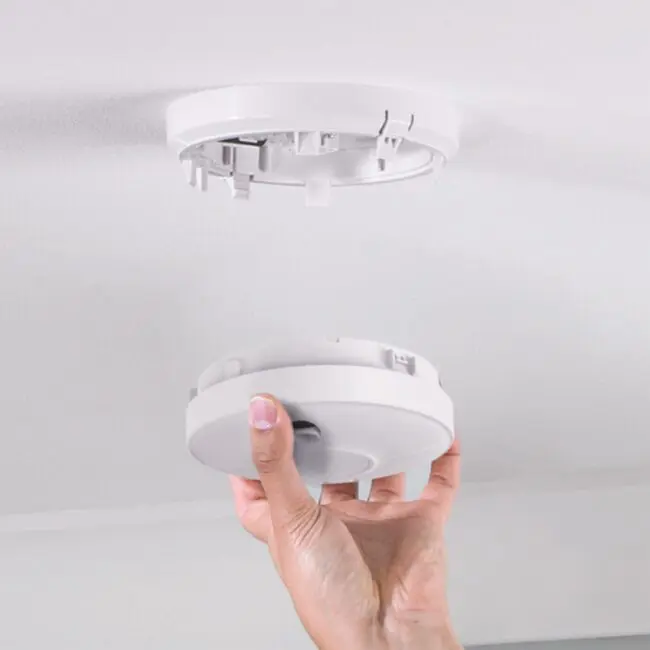

A hand installs or removes a CW1-PF-T smoke detector from a ceiling mount.

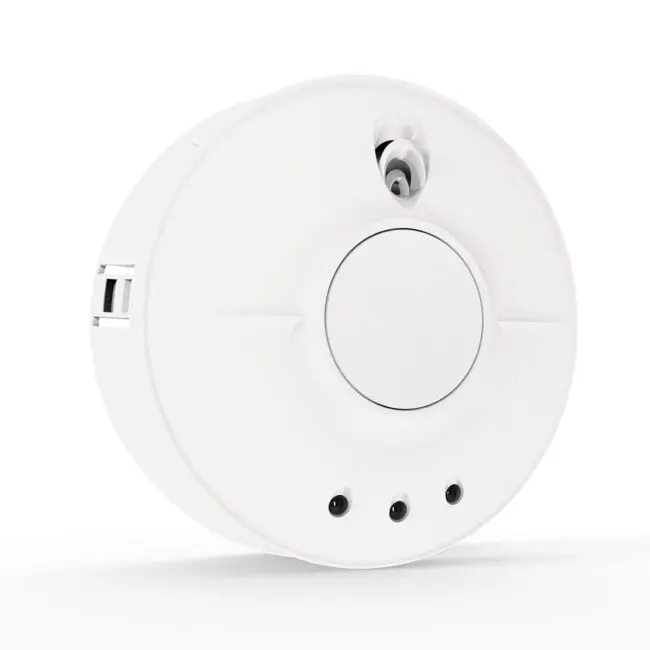

CW1-PF-T round white smoke detector with sensor and three indicator lights.

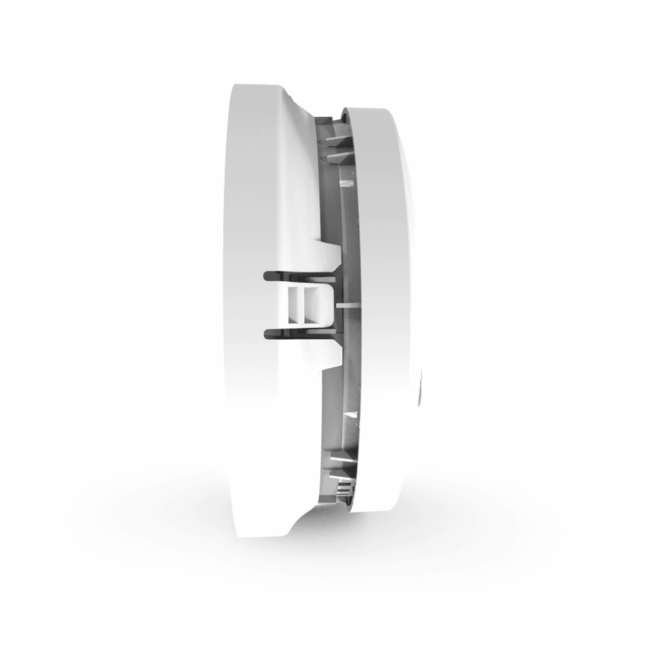

Side view of a CW1-PF-T white round smoke detector, isolated on a white background.

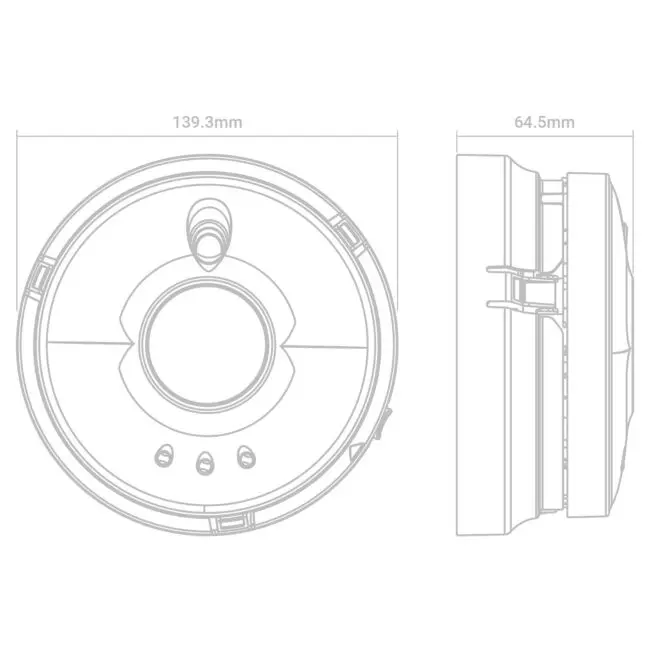

Technical drawing of CW1-PF-T, round, 139.3mm wide, 64.5mm deep.

CW1-PF-T

Carbon Monoxide Alarm with Push Fit Base

CO 5 Year Warranty Push to fit Mains Powered

Product description

We understand cost can be a huge factor for some projects, our mains 9V range offers a cost effective solution without compromising on quality or compliance, designed to save contractors time and money on installations.

The CW1-PF-T features advanced electrochemical sensing technology, an accurate and proven method of sensing carbon monoxide. Our CO alarms are calibrated and tested in CO gas, designed to accurately measure low levels of CO to provide the earliest warning. Compatible with SW1 Smoke, HW1 Heat and RF-BF-T wireless interlink base.

  • Mains powered with replaceable 9V battery back-up
  • For use in any room with a fuel burning appliance and main living spaces
  • Features electrochemical sensing technology for rapid CO detection
  • EN 50291-1: 2018
  • Supplied with push fit base
  • Dust cap supplied to prevent dust or paint entering a device during installation or whilst building projects are in progress
  • Easy installation – Push fit base specifically designed for easy installation. Align arrows to ensure robust and secure connection
  • Interlink networks – Hardwire interlink up to 12 SW1-PF-T, HW1-PF-T, CW1-PF-T devices or use RF-BW-T base to wireless interlink multiple alarms
MoreLess

We understand cost can be a huge factor for some projects, our mains 9V range offers a cost effective solution without compromising on quality or compliance, designed to save contractors time and money on installations.

The CW1-PF-T features advanced electrochemical sensing technology, an accurate and proven method of sensing carbon monoxide. Our CO alarms are calibrated and tested in CO gas, designed to accurately measure low levels of CO to provide the earliest warning. Compatible with SW1 Smoke, HW1 Heat and RF-BF-T wireless interlink base.

Installation & Setup

Get the help and support you need to easily set up and install your FireAngel alarm for instant protection.

Installation guide

Installation guide

Click the icon to find out more about installing your pro connected app

Build a network

Build a network

Click the icon to find out how to build a network of pro connected alarms

Resources

For more technical and specification information on this alarm, view our manual and datasheet.

Product manual

Product manual

Click the icon to download the product manual

Datasheet

Datasheet

Click the icon to download the product datasheet

Related FAQs

Yes, our Mains 9V range of SW1-PF-T, HW1-PF-T, CW1-PF-T alarms can be hardwire interconnected with up to 12 smoke, heat or CO alarms or wirelessly interconnected with up to 50 alarms with the RF interlink base (RF-BW-T)

It’s not recommended to mix alarms from different manufacturers as they may not be compatible in terms of interconnectivity or performance. FireAngel alarms should ideally be used with other FireAngel models to ensure proper functioning of any linked alarm systems.

If you have any further questions, get in touch with our Customer Support team who would be happy to help.

Yes, our FireAngel Specification range and FireAngel Mains 9V range of alarms are suitable for all domestic properties, this includes rental and new build properties.

Whilst BS 5839‑6 has previously been split into six varying Grades, each outlining the level of protection appropriate for certain properties and their corresponding levels of risk, the new update has altered the six sections, removing Grade B and Grade E, whilst Grade D and Grade F have been split into Grade D1 / Grade D2 and Grade F1 / Grade F2 respectively. Grade C has been revised and its recommendations expanded.
The 2019 grading system is as follows:
Grade A
Separate detectors, sounders and central control and indicating equipment with back-up power supply that conforms to British Standards BS EN 54.
Grade C
Separate detectors and sounders that are mains powered with back-up power supply and central control equipment.
Grade D1
A system of one or more mains powered detectors, each with a tamper‑proof standby supply consisting of a battery or batteries (such as FireAngel’s SM-SN-1 and HM-SN-1 alarm).
Grade D2
A system of one or more mains-powered detectors, each with an integral standby supply consisting of a user‑replaceable battery or batteries. (such as FireAngel’s SW1-PF-T and HW1-PF-T alarm).
Grade F1
A system of one or more battery-powered detectors powered by a tamper‑proof primary battery or batteries (such as FireAngel’s ST-622T, ST-750 alarm).
Grade F2
A system of one or more battery-powered detectors powered by a user‑replaceable primary battery or batteries. (such as FireAngel’s SB1-T alarm).
Please note: Grades B and E are no longer defined in BS 5839-6:2019.
See all faqs

Extend your protection

Protecting your properties and tenants is easier than ever with our range of smoke, heat, and carbon monoxide alarms. To ensure complete coverage, it’s essential to make sure you’re installing best practice and ensure compliance with your regional fire & CO safety laws.

For added peace of mind, upgrade to our Specification Range. These smart alarms, designed for social housing, can be interlinked (via hardwire or wireless) so when one alarm is triggered, all alarms in the property sound. Landlords can monitor and manage alarms remotely via the FireAngel Connected app, receiving device data and notifications without needing access to the property. The free app also allows for easy testing and instant notifications, showing the status of alarms, e.g. if they’ve been removed or need maintenance.

Get in touch today to see how our FireAngel Connected solution can support you and your tenants.
