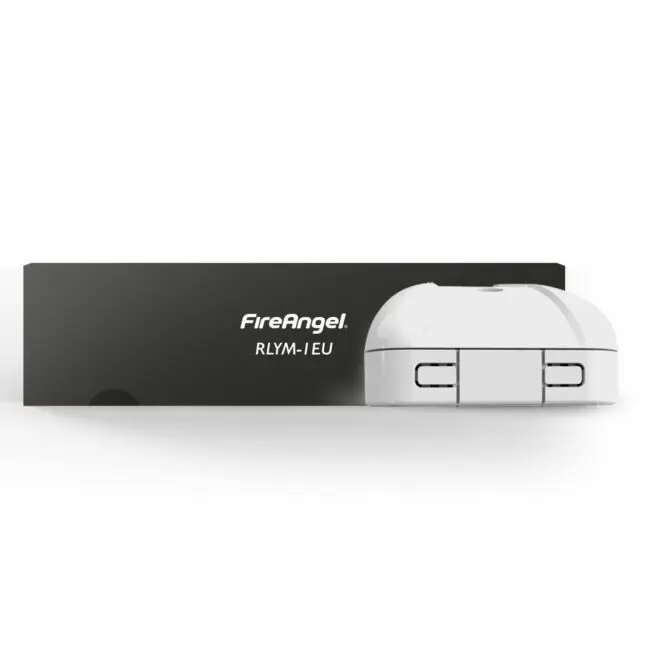

RLYM-1EU relay module device shown with a black box background.

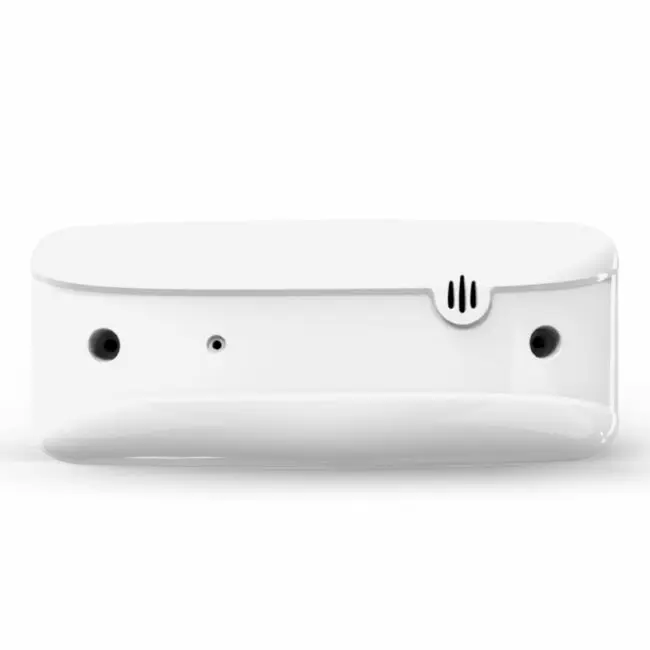

White rectangular RLYM-1EU device with two ports and a small front vent.

Front view of RLYM-1EU mouse in white with two buttons and a scroll wheel.

RLYM-1EU

Specification Relay- Hardwire Interlink Only

Name: RLYM-1EU
Brand: FireAngel
SKU: RLYM-1EU
Availability: InStock

Product description

With an ultra slim design, our specification hardwired relay will extend any Smart RF network with third party systems e.g. fire doors or telecare systems.

Options to differentiate fire and CO alarm signals and activate relay contact independently from the other. Wireless interlink version also available.

Mains powered with battery back-up
Connect fire and CO alarms to external devices such as fire doors and other Telecare systems
Ultra slim design with “pulse signal” or a “continuous switched signal” options
Hardwire interlink to a mains powered Specification smoke (SM-SN-1) or heat alarm (HM-SN-1)
Wireless only relay also available (see WRLYM-1EU)

MoreLess

GET IN TOUCH PRODUCT SUPPORT

With an ultra slim design, our specification hardwired relay will extend any Smart RF network with third party systems e.g. fire doors or telecare systems.

Options to differentiate fire and CO alarm signals and activate relay contact independently from the other. Wireless interlink version also available.

Installation & Setup

Get the help and support you need to easily set up and install your FireAngel alarm for instant protection.

Installation guide

Click the icon to find out more about installing your pro connected app

Build a network

Click the icon to find out how to build a network of pro connected alarms

Resources

For more technical and specification information on this alarm, view our manual and datasheet.

Product manual

Click the icon to download the product manual

Datasheet

Click the icon to download the product datasheet

Related FAQs

Can the RLYM-1EU connect to telecare systems?

Yes, you can connect a FireAngel relay to external devices e.g. fire doors, sprinklers and other Telecare systems. You can also connect relays with FireAngel Smoke, Heat and CO Alarms.

Can you differentiate relay contact for different devices?

You have the option to differentiate between smoke, heat & CO alarm signals and activate an appropriate relay contact independently from the other. Please refer to the manual for full details.

Why is the Power LED not illuminated on the Relay Unit?

You should check that the battery back‑up switch is on. The green unit power LED should be illuminated. Refer to the manual for full installation guidance.

What are the latest BS 5839-6:2019 system grades?

Whilst BS 5839‑6 has previously been split into six varying Grades, each outlining the level of protection appropriate for certain properties and their corresponding levels of risk, the new update has altered the six sections, removing Grade B and Grade E, whilst Grade D and Grade F have been split into Grade D1 / Grade D2 and Grade F1 / Grade F2 respectively. Grade C has been revised and its recommendations expanded.

The 2019 grading system is as follows:

Grade A

Separate detectors, sounders and central control and indicating equipment with back-up power supply that conforms to British Standards BS EN 54.

Grade C

Separate detectors and sounders that are mains powered with back-up power supply and central control equipment.

Grade D1

A system of one or more mains powered detectors, each with a tamper‑proof standby supply consisting of a battery or batteries (such as FireAngel’s SM-SN-1 and HM-SN-1 alarm).

Grade D2

A system of one or more mains-powered detectors, each with an integral standby supply consisting of a user‑replaceable battery or batteries. (such as FireAngel’s SW1-PF-T and HW1-PF-T alarm).

Grade F1

A system of one or more battery-powered detectors powered by a tamper‑proof primary battery or batteries (such as FireAngel’s ST-622T, ST-750 alarm).

Grade F2

A system of one or more battery-powered detectors powered by a user‑replaceable primary battery or batteries. (such as FireAngel’s SB1-T alarm).

Please note: Grades B and E are no longer defined in BS 5839-6:2019.
