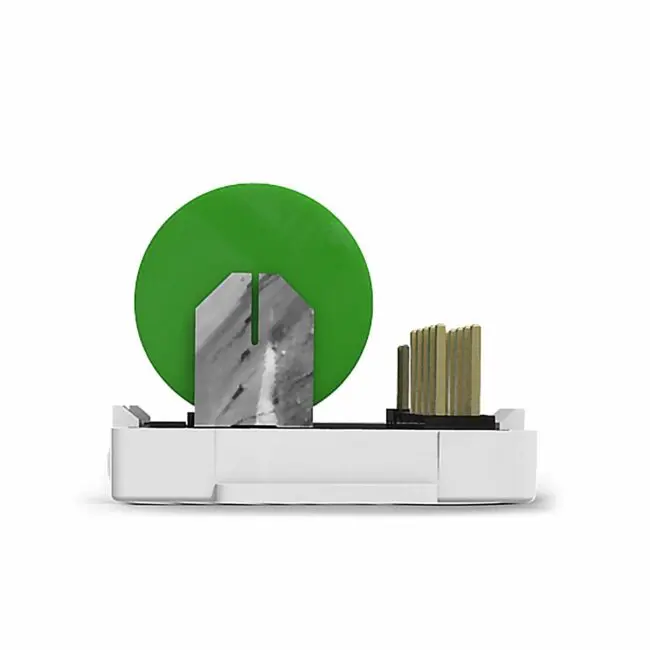

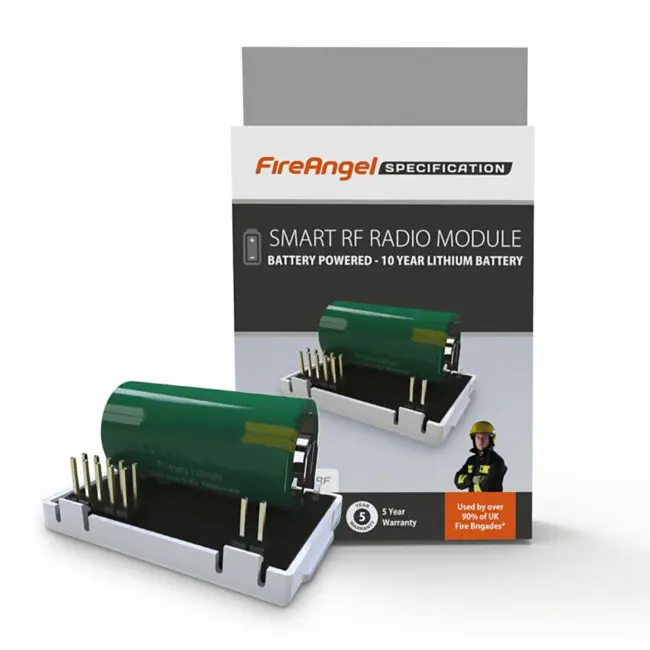

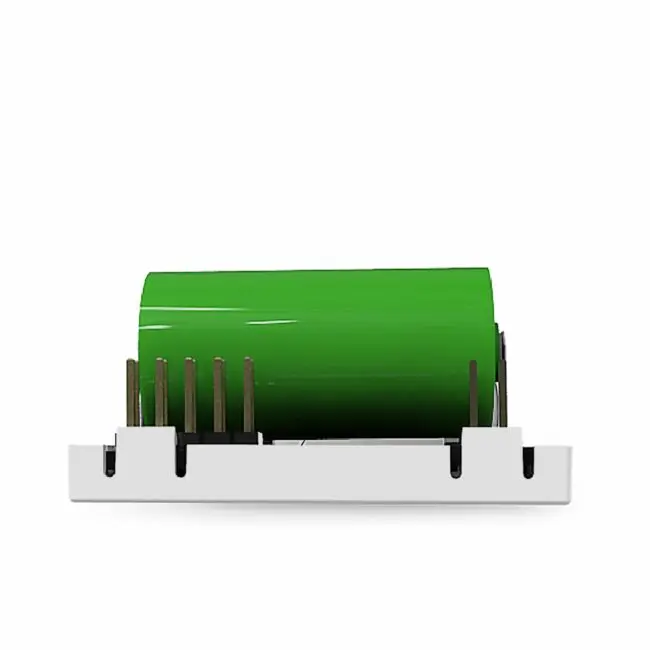

FS1521W2-T

Specification Smart RF Radio Module

Product description

Easily upgrade your compatible Specification devices with the Smart RF module to create a wireless network, allowing you to interlink multiple alarms including the FireAngel Connected Gateway.

Quick and simple network setup requiring no additional wiring, and ensures that when one alarm sounds, they all sound, providing faster alerts throughout the entire property for enhanced safety.

10 year sealed lithium battery back-up
Works with all Specification devices

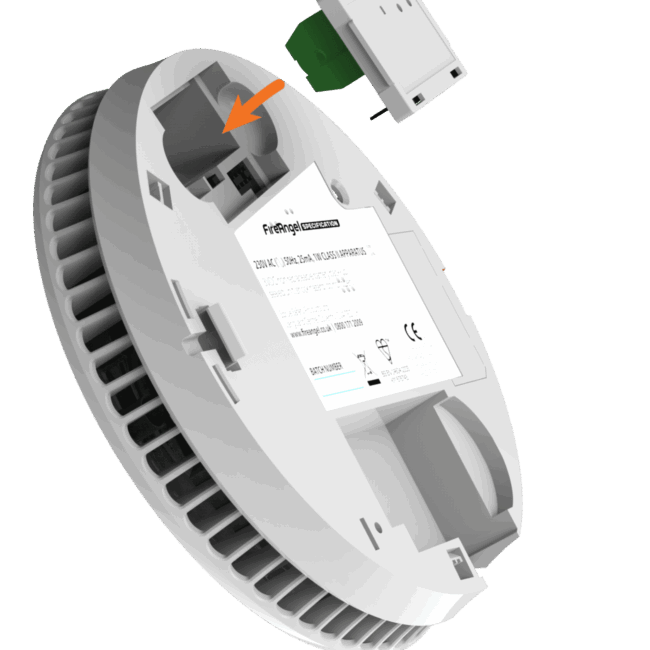

Fit this Smart RF Module within Smart RF Ready Specification devices to wireless interlink multiple devices on a single network, including a FireAngel Connected Gateway
Quick and easy installation – simple to place into an alarm
RF transmitter and receiver in each module for high performance
Create a wireless network with Smart RF wireless technology (hybrid network compatibility also supported)
Compatible with FireAngel Connected – Simply add a FireAngel Gateway to activate our Connected cloud-based platform

MoreLess

GET IN TOUCH PRODUCT SUPPORT

Easily upgrade your compatible Specification devices with the Smart RF module to create a wireless network, allowing you to interlink multiple alarms including the FireAngel Connected Gateway.

Quick and simple network setup requiring no additional wiring, and ensures that when one alarm sounds, they all sound, providing faster alerts throughout the entire property for enhanced safety.

Installation & Setup

Get the help and support you need to easily set up and install your FireAngel alarm for instant protection.

Installation guide

Click the icon for installation support

Build a network

Click the icon to learn how to build a network

Resources

For more technical and specification information on this alarm, view our manual and datasheet.

Product manual

Click the icon to download the product manual

Datasheet

Click the icon to download the product datasheet

Related FAQs

Will this work with mains and/ or battery products?

Featuring Smart RF technology, our mesh monitor is compatible for use with our Specification range of mains and battery‑powered devices.

Why would I fit a Smart RF module into Specification alarms?

To activate wireless interlink – by fitting a Smart RF module in the base of compatible Specification ‘Smart RF Ready’ products, you can create a safety network containing multiple devices connected wirelessly. See the manual for further information.

What are the latest BS 5839-6:2019 system grades?

Whilst BS 5839‑6 has previously been split into six varying Grades, each outlining the level of protection appropriate for certain properties and their corresponding levels of risk, the new update has altered the six sections, removing Grade B and Grade E, whilst Grade D and Grade F have been split into Grade D1 / Grade D2 and Grade F1 / Grade F2 respectively. Grade C has been revised and its recommendations expanded.

The 2019 grading system is as follows:

Grade A

Separate detectors, sounders and central control and indicating equipment with back-up power supply that conforms to British Standards BS EN 54.

Grade C

Separate detectors and sounders that are mains powered with back-up power supply and central control equipment.

Grade D1

A system of one or more mains powered detectors, each with a tamper‑proof standby supply consisting of a battery or batteries (such as FireAngel’s SM-SN-1 and HM-SN-1 alarm).

Grade D2

A system of one or more mains-powered detectors, each with an integral standby supply consisting of a user‑replaceable battery or batteries. (such as FireAngel’s SW1-PF-T and HW1-PF-T alarm).

Grade F1

A system of one or more battery-powered detectors powered by a tamper‑proof primary battery or batteries (such as FireAngel’s ST-622T, ST-750 alarm).

Grade F2

A system of one or more battery-powered detectors powered by a user‑replaceable primary battery or batteries. (such as FireAngel’s SB1-T alarm).

Please note: Grades B and E are no longer defined in BS 5839-6:2019.

What alarms do I need to install in my private rental property?

For maximum protection for private rental properties smoke alarms must be installed on every floor where there is living accommodation (e.g., bedrooms, living rooms, hallways)
Heat alarms should be installed in kitchens and areas prone to false alarms.
Carbon monoxide alarms must be fitted in rooms with solid fuel appliances (e.g., wood-burning stoves, coal fires). Consider installing interconnected alarms to increase safety, especially in larger properties or properties with multiple tenants.

See all faqs

Extend Your Protection

Protecting your properties and tenants is easier than ever with our range of smoke, heat, and carbon monoxide alarms. To ensure complete coverage, it’s essential to make sure you’re installing best practice and ensure compliance with your regional fire & CO safety laws.

For added peace of mind, upgrade to our Specification Range. These smart alarms, designed for social housing, can be interlinked (via hardwire or wireless) so when one alarm is triggered, all alarms in the property sound. Landlords can monitor and manage alarms remotely via the FireAngel Connected app, receiving device data and notifications without needing access to the property. The free app also allows for easy testing and instant notifications, showing the status of alarms, e.g. if they’ve been removed or need maintenance.

Get in touch today to see how our FireAngel Connected solution can support you and your tenants.
